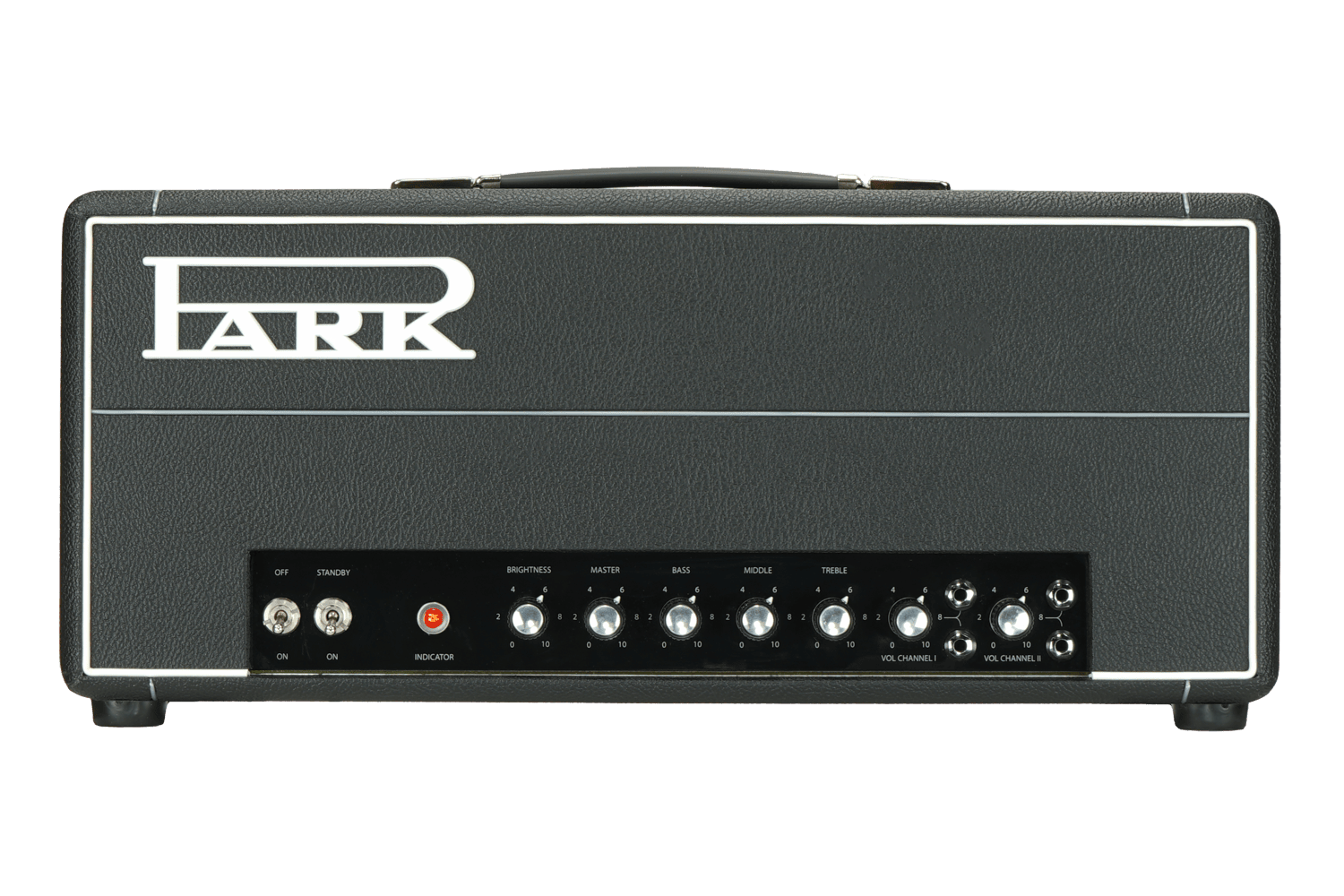

HANDWIRED
P50M
Custom
The Park P50M is the first split cathode amp by Jim Marshall allowing channel one to be significantly brighter and cut through the mix - a small change to a classic design with really big results. Increased filtering added a more immediate player response and a stiffer feeling from the power section. This circuit went on to define 70's rock and created the sonic landscape most people/players associate with Park/Marshall Amps. The P50M amp circuit defined a whole generation of music and was the bridge between the Park 45 and the Park PMV (Cascading channels and a Master Volume).
FEATURE OVERVIEW
- — EL34 tubes = classic British tone
- — 2 Channel / 4 Input (`Jump` the two channels for additional tonal range and tube saturation).
- — 40 Watts clean, 70 Watts cranked.
- — Solid state rectifier.
The PPIMV is a volume control after the signal is split by the phase inverter tube and just before it goes into the power section (tubes) of the amp. Because the PPIMV comes after the phase inverter tube it benefits from a little more added 'overdrive' when compared to the PrePIMV.
A neat trick with the PPIMV is that by cranking it you are essentially 'taking it out of the circuit completely' and hearing the amp without a Master Volume which only became available in later models.
A neat trick with the PPIMV is that by cranking it you are essentially 'taking it out of the circuit completely' and hearing the amp without a Master Volume which only became available in later models.
Specs
wattage 50W
output valves 2 x EL34
- Road Ready — Rugged 18mm Birch-Ply Construction
- Band Ready — 'Soak Tested' by our Custom Shop Technicians
- Touring Ready — World Voltage and Impedance Selectors
- Based on Hiwatt's original circuit designed by Dave Reeves.
- Original Partridge spec English transformers.
- Meticulously hand-wired to Harry Joyce's exacting military standards.
- 🇬🇧 Proudly manufactured in the Park Custom Shops.
