PEDALSMITH 30 Head
30W Pedal Platform Amp w/ Effects Loop
The classic DR504 circuit updated with modern innovation and building techniques. Crystal clear, dynamic Hiwatt tone with two 6V6s pushing over 30 watts for pushed tones at lower volumes, as well as a pedal platform like no other. High/Low inputs to tune the gain range to your pickups, with each acting as a ‘Linked’ input (as seen on the legendary 70’s Hiwatts modified for Pink Floyd) sending your signal to both Normal and Brilliant channels for further sculpting of your tone. Hiwatt are renowned for their use as a pedal platform. The Pedalsmith now takes that one step further by adding a clean and quiet effects loop for inserting pedals after natural valve preamp gain - your modulation and time-based effects have never sounded better.
FEATURE OVERVIEW
- — Based on our legendary Custom Shop DR504 - the Hiwatt tone that launched a thousand records.
- — 'Filter' switch for three different circuit variations offering more treble and more bass response.
- — EL84 output valves to offer solid bass response while achieving more compression and overdrive at lower volumes.
- — Post-preamp FX Loop for extra versatility with use with preamps, modulation, and time-based effects.
- — Birch ply construction for Durability and sonic stability.
- — British engineering for classic Hiwatt tone.


Specs
wattage30W
channelsNormal, Brilliant
input
- High and Low 1/4" Mono Input
outputs
2 x 1/4" Speaker, 1/4" Effects Loop Send
preamp valves4 x ECC83 (12AX7)
output valves2 x 6V6

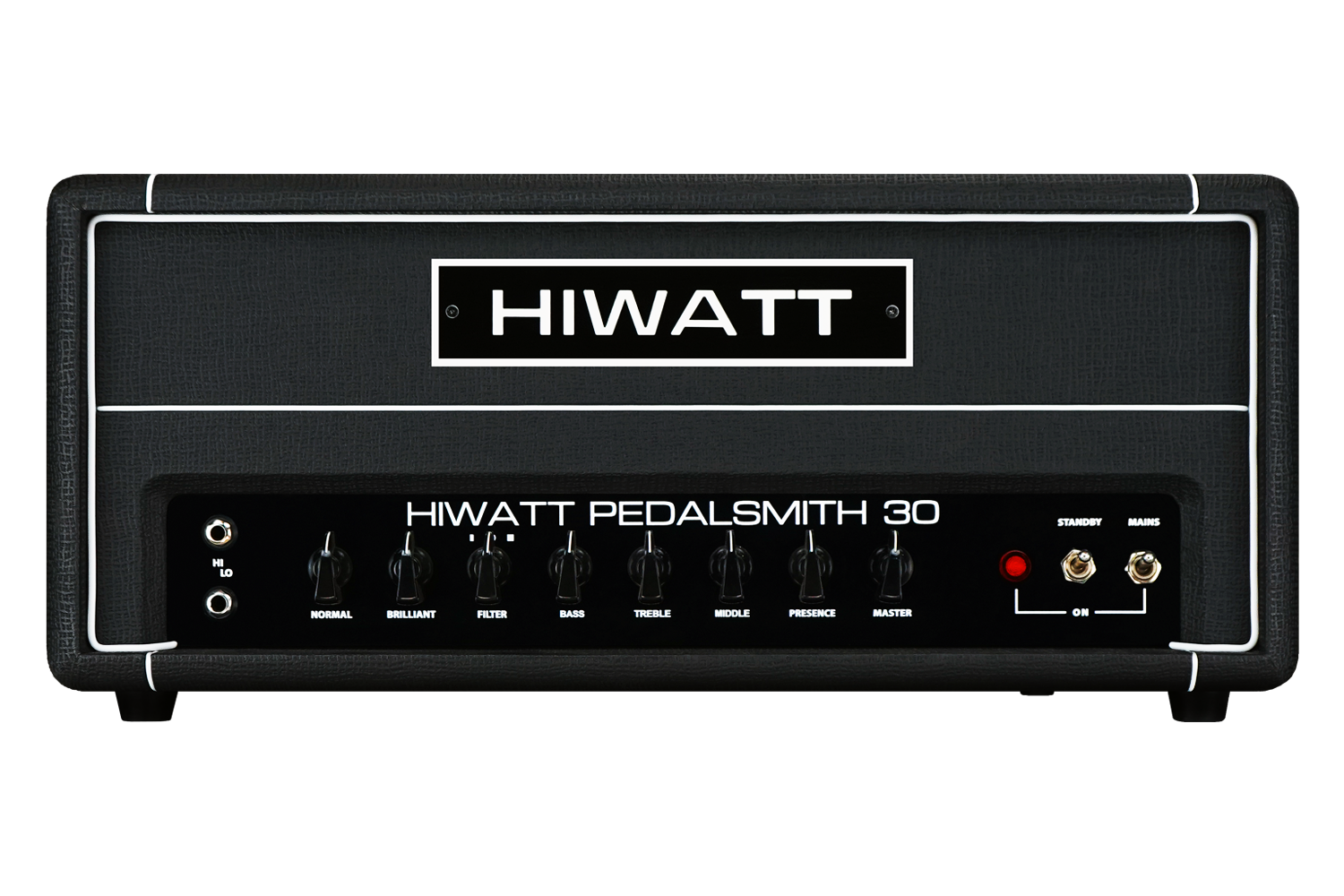

controls
- Normal Volume
- Brilliant Volume
- Bass
- Middle
- Treble
- Presence
- Master Volume
height225mm (~9")
width516mm (~21")
depth252mm (~10")
weight14.7 Kg (~33 lbs)
